（SAKZ 纸浆泵 / SAKZ PULP PUMP）

品牌：博奥泵业 BOAO PUMP

产品： SAKZ 纸浆泵 / SAKZ PULP PUMP

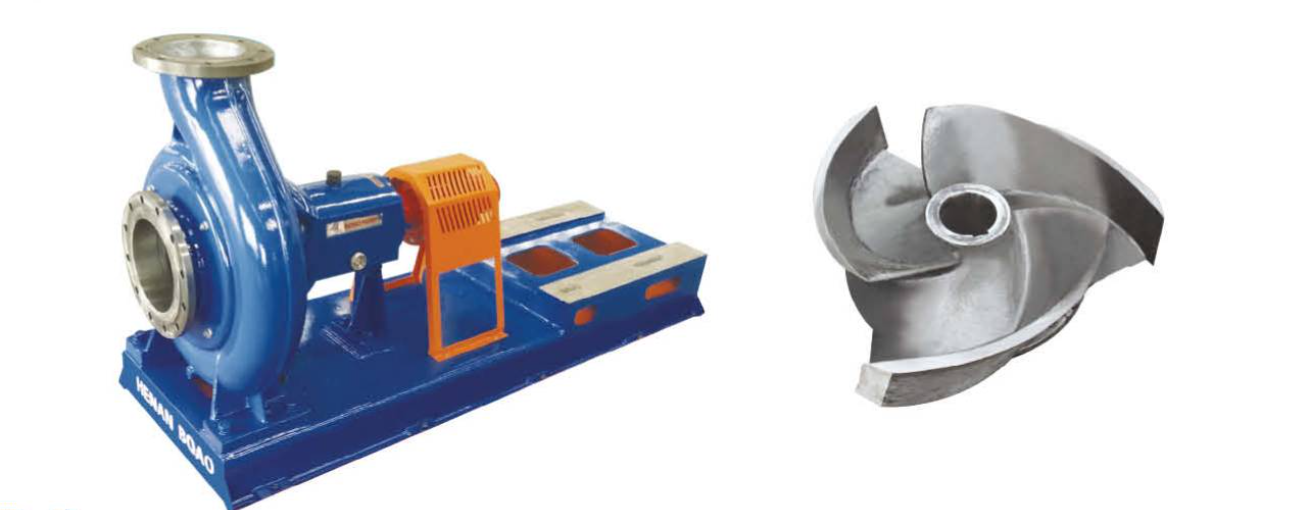

（配图：产品实物图、泵过流部件/叶轮类三维图）

概述

SAKZ 系列纸浆泵是根据我公司三十多年的制泵经验，详细研究并吸收国内外厂家纸浆泵的优点，结合国内造纸行业纸浆泵的实际使用情况，自主研制、开发的新一代纸浆泵。

引进国内外最优秀水力模型，采用 CFD 计算流体动力学分析方法，针对性地进行优化分析改进，性能指标全面超越行业水平，达到国际先进水平，最高效率突破 92%。

采用三片、四片或六片敞开式大扭曲叶片，适当的加宽流道，通过能力更强，适用于输送各种不同的介质——从水到滤液，纸浆到回收纤维以及浓度高达 6% 的机浆纤维，从水到过滤器叶轮，泵到回收纤维和机械浆料。在添加剂，也可适用于企业制糖、淀粉加工、化工液体等介质的输送。

根据国内纸浆粗、杂质大、要求耐磨等特点，经过电脑模拟实验，在叶轮后盖板处加了三角形盖板，使泵既有自行轴向推力补偿能力，又很好的耐磨性，易于维修。

叶轮前后均设耐磨板，可有效保护泵体和泵盖。

采用单级单吸悬臂结构，泵的进出口与轴在同一垂直平面，泵体上单独铸出支撑脚，直接固定在底座上，泵盖通过螺栓固定在泵体和轴承架之间，在检修时拆除轴承架与泵体之间的连接螺栓，就可以在不拆卸泵体、出口管路情况下，叶轮、后耐磨板、轴封部件和轴承架等可作为“提拉部件”进行拆卸或安装。

对大规格的泵，在泵和电机之间加上中间加长联轴器，这样在检修时只要撤除中间联轴器，就可以把传动部分从泵体中拿出，同时也不必移动电机。

旋转方向：从驱动端看，泵的旋转方向为顺时针旋转。

GENERAL

SAKZ series pulp pump is new generation of product researched and developed independently by our company on the basis of over 30 years of pump manufacturing experience, introducing and absorbing advantages of pulp pump pumps at home and abroad as well as consideration of actual operations of pulp pumping of paper making at home.

It introduces the internationally most excellent hydraulic model, adopts CFD flow mechanical analysis, conducts special optimization and improvement, and the performance indices achieved a good jump, reaching internationally advanced level, and the max efficiency exceeds 92%.

It adopts three, four or six opening highly twisted blades, properly widen flow pass with high throughput capacity, which is applicable for conveying various media, from water to filter liquor, pulp to recycled fiber and mechanical pulp with thickness of 6%, in addition, it is applicable for conveyings media such as sugar making, starch process and chemical liquids.

According to the environments such as coarse pulp, big impurity and high wear resistance, through computer-based simulation tests, a triangular cover plate is designed on the back cover plate of impeller, which makes the pump have axial thrust compensation, high wear resistance and easy for maintenance.

Wear-resisting plates are designed before and after the impeller to well protect the pump body and cover.

It adopts one-stage and one suction cantilever construction, the pump inlet and outlet is kept on the same vertical plane, supporting legs are welded on the pump body to be fixed on the base, the pump cover is fixed between the pump and the bearing seat through bolts. In case of examination or repair, remove the connecting bolts between the bearing seat and the pump body, as such, without removing the inlet and outlet pipes of the pump, the impeller, back wear-resisting plate, shaft seal and bearing support can be taken as a pull/draw part for removal and installation.

As for high-specification pump, a prolonged shaft coupling can be added between the pump and the motor, as such, after the shaft coupling is removed before examination and repair, the driving part can be taken out of the pump body without removal of the motor.

Rotation direction: seen from the driving, the pump's rotation direction shall be clockwise.

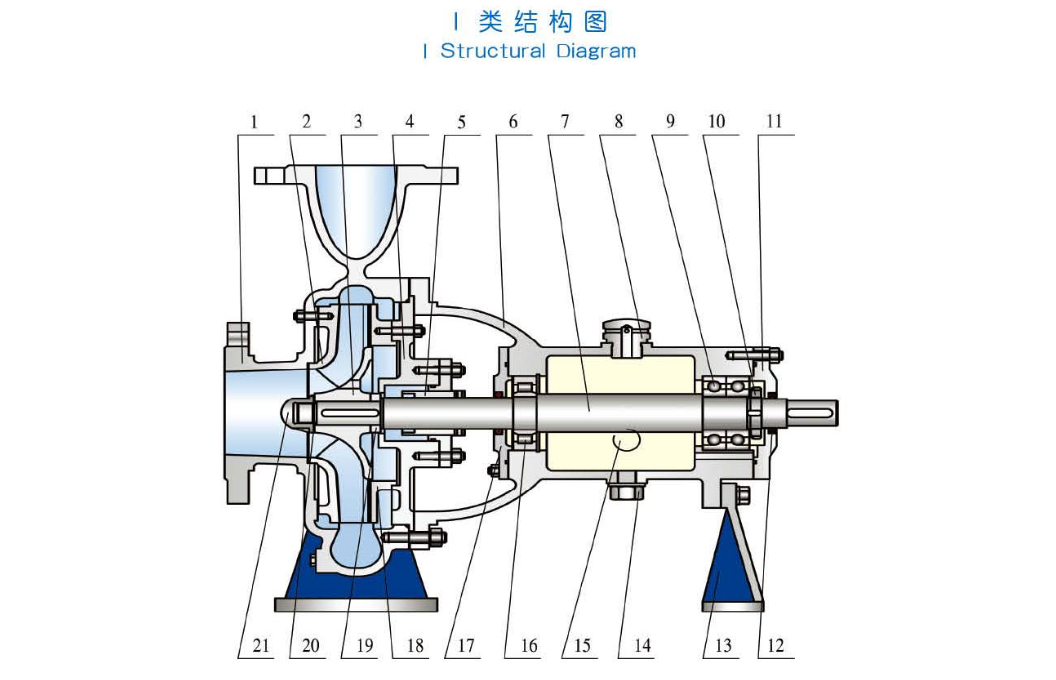

（I 类结构图 / I Structural Diagram）

部件对照：

序号	中文名称	英文名称	序号	中文名称	英文名称
1	泵壳	Pump volute	12	骨架油封	Framework oil seal
2	前耐磨板	Front wear resistant plate	13	支撑架	Support frame
3	叶轮	Impeller	14	放油螺塞	Oil drain plug
4	后泵盖	Back pump cover	15	油标	Oil leveler
5	机械密封	Shaft seal	16	前轴承	Front bearing
6	轴承架	Bearing support	17	前轴承盖	Front bearing cover
7	泵轴	Pump shaft	18	后护板	Back protective plate
8	透气盖	Air hole	19	定位环	Locating ring
9	后轴承	Back bearing	20	叶轮止退垫	Impeller thrust washer
10	圆螺母	Round nut	21	叶轮螺母	Impeller nut
11	后轴承盖	Back bearing cover

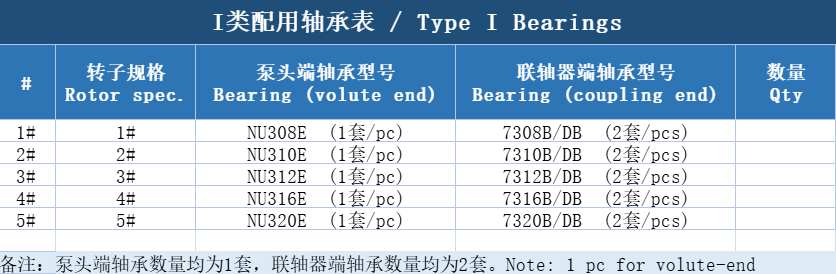

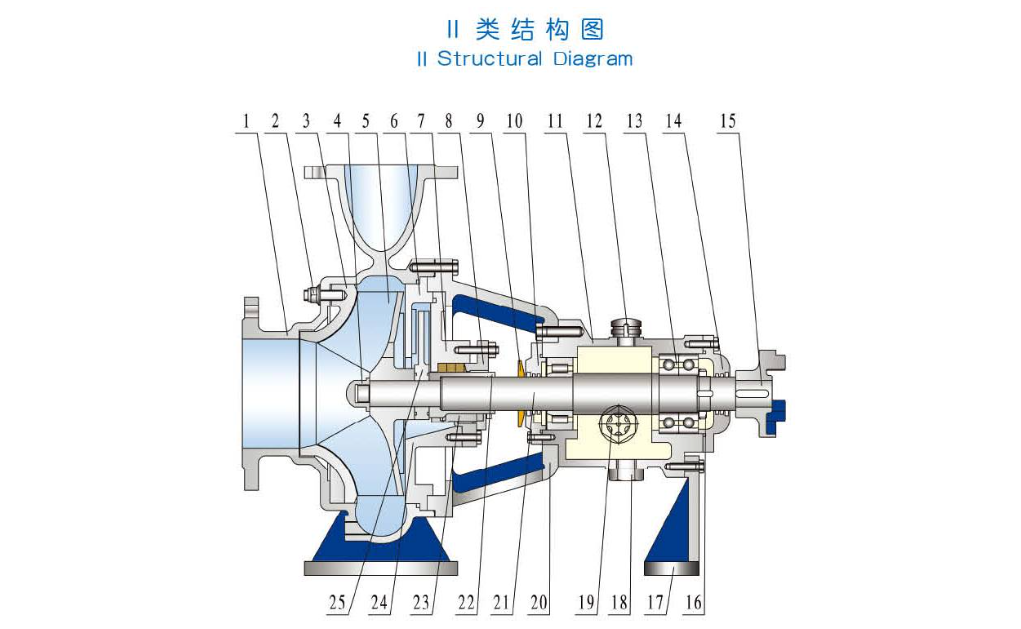

（配图：II 类结构剖视图）

II 类结构图 / II Structural Diagram

部件对照：

序号	中文名称	英文名称	序号	中文名称	英文名称
1	泵壳	Pump volute	14	后轴承盖	Back bearing cover
2	调整螺栓	Adjustable bolt	15	泵侧联轴器	Pump side coupling
3	调整盖	Adjustable cover	16	圆螺母	Round nut
4	叶轮压帽	Impeller pressing cap	17	支撑架	Support frame
5	叶轮	Impeller	18	放油螺塞	Oil drain plug
6	叶轮隔板	Impeller baffle plate	19	油标	Oil leveler
7	后泵盖	Back pump cover	20	前轴承	Front bearing
8	填料压盖	Packing gland	21	泵轴	Pump shaft
9	甩水环	Rejection water ring	22	轴套	Shaft sleeve
10	前轴承盖	Front bearing cover	23	机械密封	Mechanical seal
11	轴承体	Bearing body	24	机封腔	Mechanical seal chamber
12	透气盖	Vent cap	25	副叶轮	Associated impeller
13	轴承	Bearing

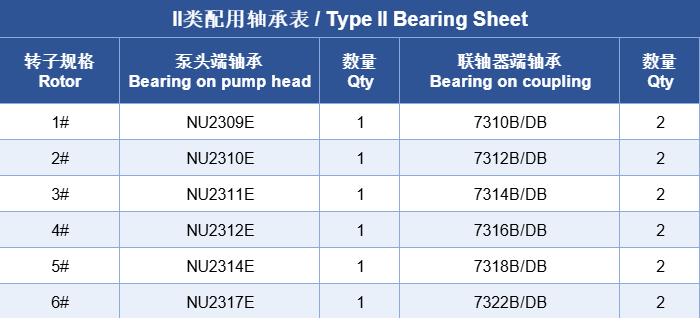

II 类配用轴承表 / Type II Bearing Sheet

（II 类主要部件材质配备表 / 运行特性范围图）

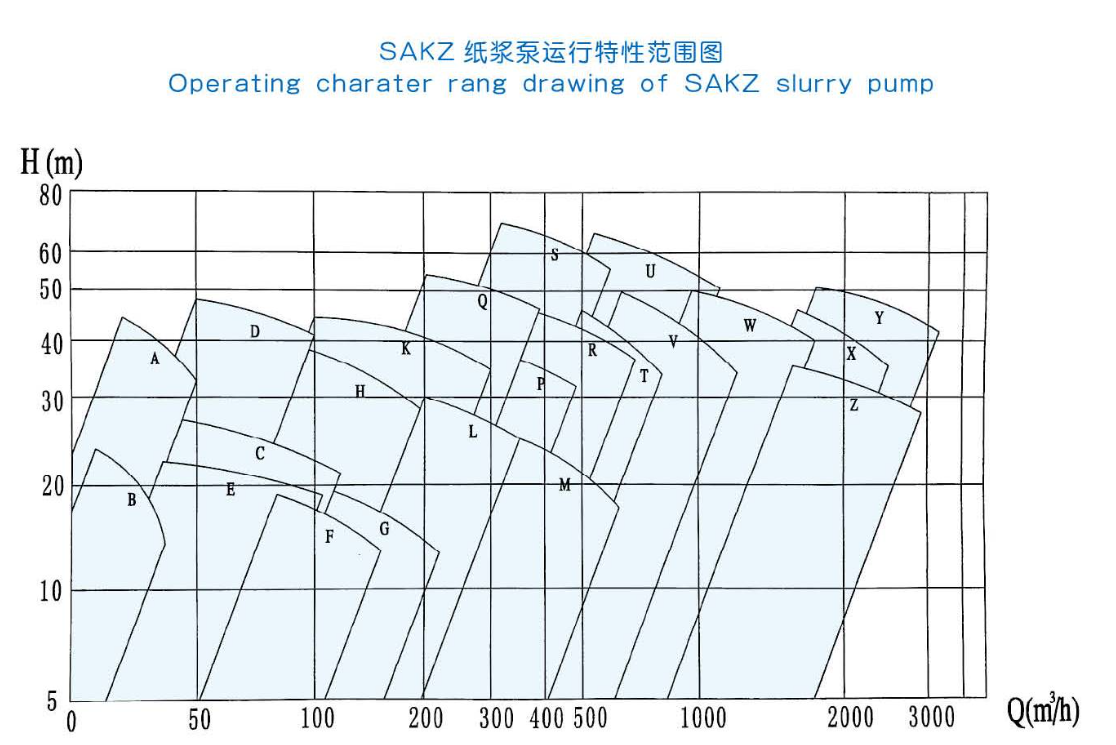

（下图：SAKZ 纸浆泵运行特性范围图 / Operating character rang drawing of SAKZ slurry pump，含 H(m)–Q(m³/h) 性能曲线，字母 A~Z/U/Y 等工况区）

部件名称 Part	材料类型 A Material Type A	材料类型 B Material Type B
泵壳 Pump volute	耐磨合金钢 Wear resistance alloy steel	耐磨不锈钢 Wear resistance stainless steel
叶轮 Impeller	耐磨不锈钢 Wear resistance stainless steel	耐磨不锈钢 Wear resistance stainless steel
调整盘 Adjusting plate	耐磨不锈钢 Wear resistance stainless steel	耐磨不锈钢 Wear resistance stainless steel
叶轮隔板 Impeller baffle	耐磨合金钢 Wear resistance alloy steel	耐磨不锈钢 Wear resistance stainless steel
后泵盖 Back pump cover	HT	耐磨不锈钢 Wear resistance stainless steel
副叶轮 Associated impeller	耐磨合金钢 Wear resistance alloy steel	耐磨不锈钢 Wear resistance stainless steel
泵轴 Pump shaft	40Cr	40Cr
轴承体 Bearing support	QT500-7	QT500-7

备注：除以上配备材质外，也可根据抽吸的物料选配不同的耐磨、耐腐材质。

Note: Except the above materials, different wear-resistant materials can be selected as per the suction.

类别	序号	规格型号	流量 (m³/h)	扬程 (m)	转速 (r/min)	NPSHr(m)	效率 (%)	配用电机功率 (KW)
A	1	50SAKZ1013032	30	32	1440	4	55	Y132M4/7.5
A	2	50SAKZ1013040	30	40	1460	4	56	Y160M4/11
A	3	50SAKZ1013028	30	28	1440	4	53	Y132S4/5.5
B	1	50SAKZ1022520	25	20	1420	4	60	Y100L₂4/3
B	2	50SAKZ1022215	22	15	1420	4	58	Y100L₁4/2.2
B	3	50SAKZ1023022	30	22	1440	4	62	Y112M4/4
B	4	50SAKZ1023015	30	15	1420	4	62	Y100L₂4/3
B	5	50SAKZ1022010	20	10	940	4	60	Y100L6/1.5
C	1	80SAKZ1038025	80	25	1440	4	65	Y160M4/11
C	2	80SAKZ1036025	60	25	1440	4	63	Y132M4/7.5
C	3	80SAKZ1035520	55	20	1440	4	62	Y132S4/5.5
D	1	80SAKZ1048045	80	45	1470	4	63	Y180M4/18.5
D	2	80SAKZ1048035	80	35	1460	4	63	Y160L4/15
D	3	80SAKZ1047030	70	30	1460	4	62	Y160M4/11
D	4	80SAKZ1047040	70	40	1460	4	63	Y160L4/15
D	5	80SAKZ1044018	40	18	960	4	62	Y132M₁6/4
E	1	80SAKZ19020	90	20	1450	4	62	Y160M4/11
E	2	80SAKZ18018	80	18	1450	4	60	Y132M4/7.5
E	3	80SAKZ17015	70	15	1450	4	60	Y132S4/5.5
E	4	80SAKZ16012	60	12	1450	4	55	Y112M4/4
E	5	80SAKZ15010	50	10	1450	4	55	Y100L₂4/3
F	1	100SAKZ111017	110	17	1460	2.5	60	Y160M4/11
F	2	100SAKZ110015	100	15	1450	2.5	60	Y132M4/7.5
F	3	100SAKZ19012	90	12	1450	2.5	60	Y132S4/5.5
F	4	100SAKZ18010	80	10	1440	2.5	55	Y112M4/4
G	1	125SAKZ118016	180	16	1460	3.5	70	Y160L4/15
G	2	125SAKZ116013	160	13	1460	3.5	65	Y160M4/11
G	3	125SAKZ113010	130	10	1450	3.5	65	Y132M4/7.5
H	1	100SAKZ216035	160	35	1470	3.5	67	Y200L4/30
H	2	100SAKZ216027	160	27	1470	3.5	65	Y180L4/22
H	3	100SAKZ212032	120	32	1470	3.5	65	Y180M4/18.5
H	4	100SAKZ215025	150	25	1470	3.5	65	Y180M4/18.5
H	5	100SAKZ215022	150	22	1460	3.5	65	Y160L4/15
H	6	100SAKZ213018	130	18	1460	3.5	60	Y160M4/11
K	1	125SAKZ225040	250	40	1480	4	70	Y225M4/45
K	2	125SAKZ225033	250	33	1480	4	70	Y225S4/37
K	3	125SAKZ216040	160	40	1480	4	70	Y200L4/30
K	4	125SAKZ222032	220	32	1480	4	70	Y200L4/30
K	5	125SAKZ216032	160	32	1480	4	69	Y180L4/22
K	6	125SAKZ220024	200	24	1470	4	68	Y180L4/22
K	7	125SAKZ220021	200	21	1470	4	68	Y180M4/18.5
L	1	150SAKZ235026	350	26	1480	3	70	Y225S4/37
L	2	150SAKZ230022	300	22	1470	3	70	Y200L4/30
L	3	150SAKZ230018	300	18	1470	3	70	Y200L4/30
L	4	150SAKZ230015	300	15	1470	3	65	Y180L4/22
L	5	150SAKZ230012	300	12	1470	3	65	Y180M4/18.5
L	6	150SAKZ220010	200	10	970	3	68	Y160L6/11
M	1	200SAKZ260020	600	20	1480	3	75	Y250M4/55
M	2	200SAKZ256018	560	18	1480	3	72	Y225M4/45
M	3	200SAKZ253014	530	14	1480	3	70	Y225S4/37
M	4	200SAKZ248012	480	12	1470	3	70	Y200L4/30
M	5	200SAKZ24609	460	9	1470	3	65	Y180L4/22
M	6	200SAKZ23708	370	8	970	3	72	Y180L6/15
N	1	125SAKZ322038	220	38	1480	3.5	70	Y225S4/37
N	2	125SAKZ321033	210	33	1470	3.5	70	Y200L4/30
N	3	125SAKZ319027	190	27	1470	3.5	70	Y180L4/22
P	1	150SAKZ31040035	400	35	1480	4	77	Y250M4/55
P	2	150SAKZ31030040	300	40	1480	4	75	Y250M4/55
P	3	150SAKZ31025040	250	40	1480	4	75	Y225M4/45
P	4	150SAKZ31037030	370	30	1480	4	70	Y225M4/45
Q	1	150SAKZ332050	320	50	1480	2.5	75	Y280S4/75
Q	2	150SAKZ325048	250	48	1480	2.5	70	Y250M4/55
Q	3	150SAKZ333042	330	42	1480	2.5	75	Y250M4/55
Q	4	150SAKZ331035	310	35	1480	2.5	75	Y225M4/45
Q	5	150SAKZ330030	300	30	1480	2.5	70	Y225S4/37
Q	6	150SAKZ323030	230	30	1480	2.5	68	Y200L4/30
R	1	200SAKZ360040	600	40	1480	3.5	80	Y280M4/90
R	2	200SAKZ375030	750	30	1480	3.5	80	Y280M4/90
R	3	200SAKZ360034	600	34	1480	3.5	80	Y280S4/75
R	4	200SAKZ354026	540	26	1480	3.5	75	Y250M4/55
R	5	200SAKZ370020	700	20	1480	3.5	75	Y250M4/55
R	6	200SAKZ354022	540	22	1480	3.5	75	Y225M4/45
S	1	150SAKZ451060	510	60	1480	3.5	71	Y3132M4/132
S	2	150SAKZ448055	480	55	1480	3.5	70	Y315S4/110
S	3	150SAKZ445048	450	48	1480	3.5	70	Y280M4/90
S	4	150SAKZ445039	450	39	1480	3.5	68	Y280S4/75
T	1	200SAKZ41450045	500	45	1480	3.5	78	Y280M4/90
T	2	200SAKZ41470040	700	40	1480	3.5	79	Y315S4/110
T	3	200SAKZ41460040	600	40	1480	3.5	78	Y280M4/90
T	4	200SAKZ41470035	700	35	1480	3.5	78	Y280M4/90
T	5	200SAKZ41480035	800	35	1480	3.5	82	Y315S4/110
T	6	200SAKZ41480030	800	30	1480	3.5	81	Y280M4/90
U	1	200SAKZ495056	950	56	1480	3	80	Y315L₂4/200
U	2	200SAKZ480050	800	50	1480	3	80	Y315L₁4/160
U	3	200SAKZ476043	760	43	1480	3	75	Y3132M4/132
U	4	200SAKZ460025	600	25	980	3	78	Y280M6/55
V	1	250SAKZ4110040	1100	40	1480	3.5	71	Y315L₂4/200
V	2	250SAKZ4110035	1100	35	1480	3.5	71	Y315L₁4/160
V	3	250SAKZ4105031	1050	31	1480	3.5	70	Y3132M4/132
V	4	250SAKZ490027	900	27	1480	3.5	70	Y315S4/110
V	5	250SAKZ485023	850	23	1480	3.5	68	Y280M4/90
V	6	250SAKZ480012	800	12	980	3.5	68	Y280S6/45
W	1	350SAKZ5150045	1500	45	1480	2.5	75	Y355M₄4/250
W	2	350SAKZ5140036	1400	36	1480	2.5	75	Y315L₂4/200
W	3	350SAKZ5130027	1300	27	1480	2.5	70	Y315L₁4/160
W	4	350SAKZ5120022	1200	22	1480	2.5	70	Y3132M4/132
W	5	350SAKZ5100020	1000	20	980	2.5	70	Y315S6/75
W	6	350SAKZ5100015	1000	15	980	2.5	70	Y280M6/55
X	1	350SAKZ617210040	2100	40	1480	2.5	85	Y355L₂4/280
X	2	350SAKZ617200032	2000	32	1480	2.5	85	Y355M₂4/250
X	3	350SAKZ617180027	1800	27	1480	2.5	84	Y315L₂4/200
X	4	350SAKZ617140018	1400	18	980	2.5	85	Y315M6/90
X	5	350SAKZ617130015	1300	15	980	2.5	84	Y315S6/75
Y	1	400SAKZ5305042	3050	42	1480	2.5	78	Y40044/500
Y	2	400SAKZ5230043	2300	43	1480	2.5	78	Y40024/400
Y	3	400SAKZ5210042	2100	42	1480	2.5	76	Y40014/355
Y	4	400SAKZ5190028	1900	28	980	2.5	78	Y355M₁6/200
Y	5	400SAKZ5170023	1700	23	980	2.5	80	Y355M6/160
Y	6	400SAKZ5160020	1600	20	980	2.5	78	Y315L₂6/132
Z	1	500SAKZ5250030	2500	30	980	2.5	78	Y355L₂6/250
Z	2	500SAKZ5230026	2300	26	980	2.5	78	Y355L₁6/220
Z	3	500SAKZ5210022	2100	22	980	2.5	75	Y355M₁6/200
Z	4	500SAKZ5190018	1900	18	980	2.5	75	Y355M6/160
